| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS5220B-2D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 56*41*43cm/50pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 35CM/S | Depth Of Field: | 3mil：50~130mm，13mil：50~270mm |
| Scan Mode: | Manual , Auto Sense | Print Contrast Signal: | ≥20% |
| Storage: | 16Mb（over 100,000 Product Code） | Dimension: | L68.4mm * W170.6mm * H87.6mm |
| Highlight: | Bluetooth Handheld Barcode Scanner,2.4G Handheld Barcode Scanner,High Speed Handheld Barcode Scanner |
||

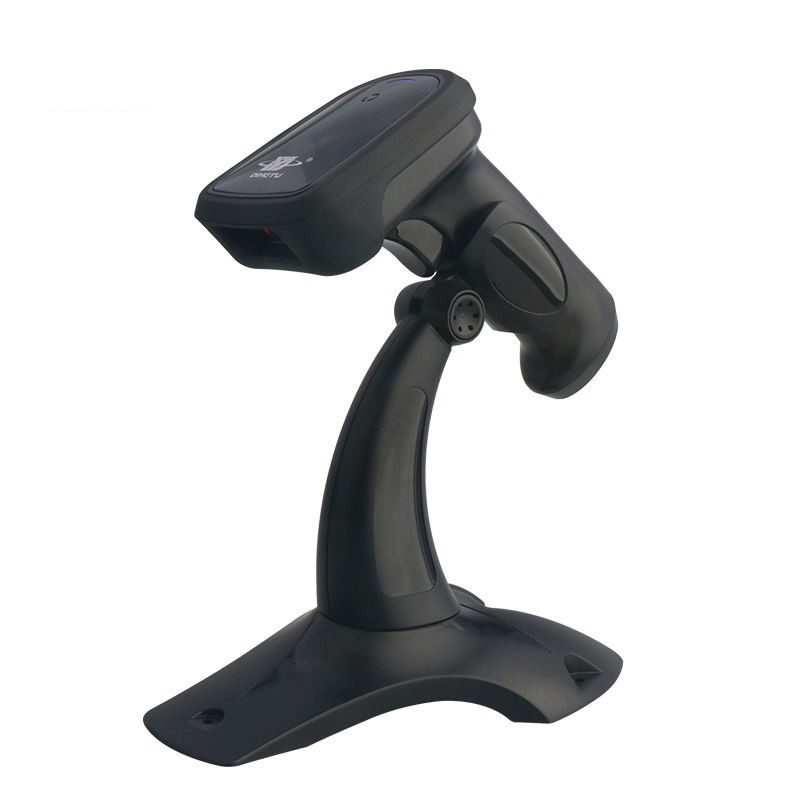

High Speed Supermarket barcode reader Wireless 2.4G and Bluetooth 2D handheld barcode scanner with leading CMOS
Product Description
DS5220B-2D is wireless 2.4G and bluetooth 2D handheld barcode scanner with good fall resistance.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)
☆ Interface: USB, wireless 2.4G, Bluetooth.
☆ Dual mode: wired, wireless, Ultra-low power consumption, continuous working time 16h.
☆ Transmission distance 150m, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed | 35CM/S |
| Depth of field | 3mil:50~130mm,13mil:50~270mm |
| Scan Mode | Manual , Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 2200mAh |
| Battery charging time | About 5 hours |
| Continuous working time | ≥16hours |
| Symbologies | 1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT |
Physical Parameter
| Weight | ≈160g(without cable) |
| Dimension | L68.4mm * W170.6mm * H87.6mm |
| Communication Mode | USB, Wireless 2.4G, Bluetooth |
| Interface Type | USB |
| Power Supply | DC5V input, Standby current:50mA,Decoding current:120mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |

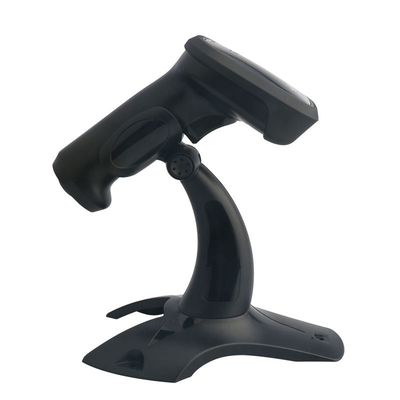

Detail Image
Production line
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
